TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad

Name: TIF1001205ES Factory Custom Size Termal Pad 12W LED Heat Sink Cooling Pad
Brand: Ziitek
Price: 0.1 USD

Wholesale TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad from china suppliers

Brand Name : Ziitek

Model Number : TIF100-12-05ES

Certification : UL and RoHs

Place of Origin : Vietnam

MOQ : 1000pcs

Price : 0.1-10 USD/PCS

Payment Terms : T/T

Supply Ability : 100000pcs/day

Delivery Time : 3-5 work days

Packaging Details : 24*13*12cm cartons

Products name : Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad

Thermal Conductivity : 1.2W/mK

Hardness : 12±5 Shore 00

Density : 2.0 g/cm³

Color : Blue

Dielectric Breakdown Voltage : >5500VAC

Application : LED,CPU,Display card,Mainboard,mother board

Keywords : Heat Sink Cooling Pad

Contact Now

TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad

The TIF™100-12-05ES Series thermally conductive interface materials are gapfillers reinforced one side with kepton; the other side with adhesive.They are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and viscoelastic feature make them ideal to coat very uneven surfaces. lts smooth, puncture-,tear-, wear-resistant reinforcement surface is perfect for reworking and plug-in devices.

Features:

> Good thermal conductive: 1.2W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS compliant
> UL recognized

Applications:

> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp

Typical Properties of TIF100-12-05ES Series
Property	Value	Test method
Color	Blue	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Density	2.0g/cm³	ASTM D297
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	******
Hardness	12±5 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 160℃	***
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant	4.5 MHz	ASTM D150
Volume Resistivity(Ohm-cm)	1.0X10¹²	ASTM D257
Fire rating	94 V0	UL equivalent
Thermal conductivity	1.2W/m-K	ASTM D5470

Standard Thicknesses:
0.010" (0.25mm), 0.020" (0.51mm), 0.030" (0.76mm), 0.040" (1.02mm),

0.050" (1.27mm), 0.060" (1.52mm), 0.070" (1.78mm), 0.080" (2.03mm),

0.090" (2.29mm), 0.100" (2.54mm), 0.110" (2.79mm), 0.120" (3.05mm),

0.130" (3.30mm), 0.140" (3.56mm), 0.150" (3.81mm), 0.160" (4.06mm),

0.170" (4.32mm), 0.180" (4.57mm), 0.190" (4.83mm), 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Company Profile

Vietnam Ziitek Technology Company Limited provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

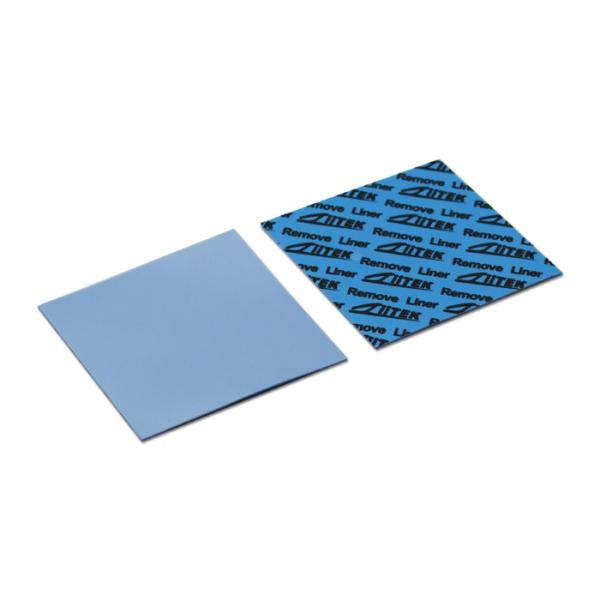

TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad Images
